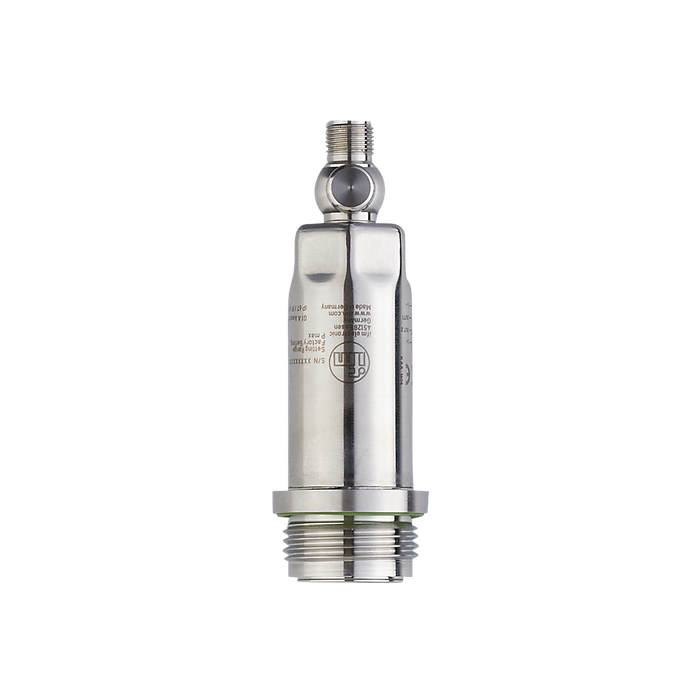

Pressure sensor with high-quality ceramic measuring cell
![](https://cdn.asp.events/CLIENT_Exhibiti_030C4FB2_97AC_2262_74166DECA5FD4BAB/sites/AusPack-2022/media/libraries/products/17333-PC_PM1707AA_01.png/fit-in/700x9999/filters:no_upscale())
Maintenance-free and robust
On the process side, the pressure sensors are maintenance-free because they have no elastomer seal. The flush and robust ceramic measuring cell is resistant to pressure and vacuum shocks and to impact by abrasive substances. In addition, the sensor withstands medium temperatures of up to 150 °C (max. 1h). It is therefore particularly suitable for all common food applications.
High accuracy
The PM16 and PM17 pressure transmitters have an overall accuracy of 0.2 %. Furthermore, temperature compensation with fast temperature changes (e.g. in CIP/SIP processes) has been improved considerably. The sensor is therefore suitable for all common food applications.
Flexible fitting
The sensors are available with Triclamp for direct installation, G1 sealing cone and G1 Aseptoflex-Vario for installation with process and welding adapters in tanks and with G1/2 sealing cone especially for installation in pipes.
