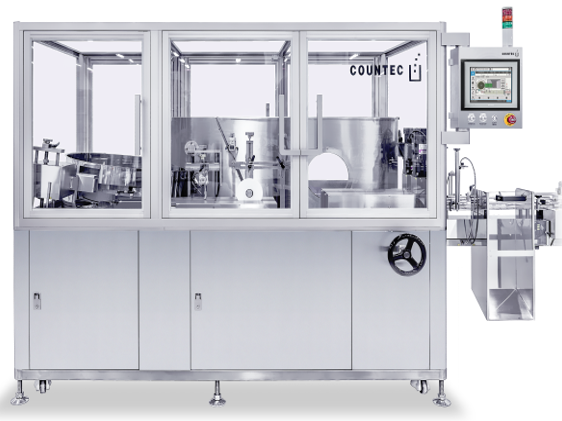

UA 120 Bottle unscrambler + Air cleaner
)
Bottles supplied to the bulk hopper are fed to the cleaning station through the bottle escalator and turn table. Through hook and bumper, bottles are inverted, and securely gripped by a side belt conveyor while they are cleaned twice by filtered & ionized air and vacuum suction and discharged in an upright position on the conveyor.
Specifications-
Output: Max. 120 bottles per minute depending on bottle shape and size
Bottle size ranges: Diameter 30-100mm, Height 40-200mm
Dimension: 3,200(L) x 1,200(W) x 1,900(H) mm
Net weight: 1,050kg
